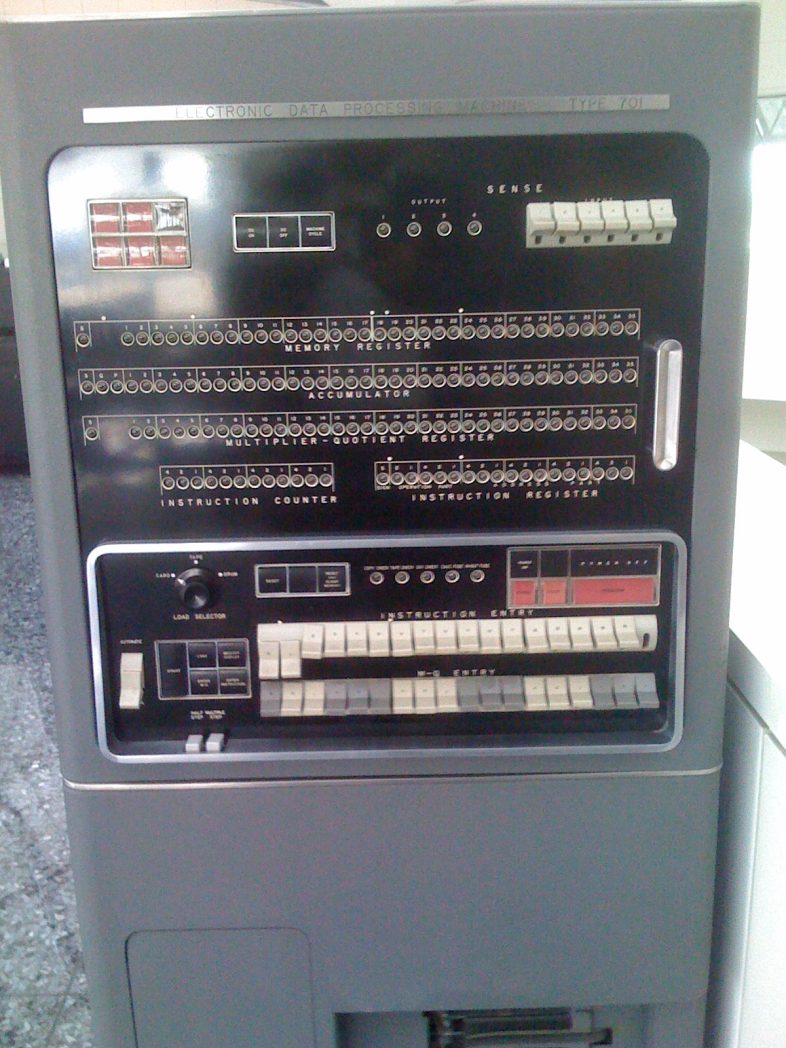

Image by/from Dan

This program counter (PC), generally known as the instruction pointer (IP) in Apple x86 and Itanium microprocessors, and often known as the instruction address register (IAR), the instruction counter, or simply area of the instruction sequencer,

is really a processor register that signifies in which a computer is within its program sequence.[note 1]

Usually, laptop computer is incremented after fetching an instruction, and supports the memory address of (“suggests”) the following instruction that might be performed.[note 2]

Processors usually fetch instructions sequentially from memory, but control transfer instructions alter the sequence by putting a brand new value within the PC. Included in this are branches (sometimes known as jumps), subroutine calls, and returns. A transfer that’s depending on the reality of some assertion lets the pc consume a different sequence under different conditions.

A branch provides the next instruction is fetched from elsewhere in memory. A subroutine call not just branches but saves the preceding items in laptop computer somewhere. Coming back retrieves the saved items in laptop computer and places it during the PC, resuming consecutive execution using the instruction following a subroutine call.

Inside a simple cpu (CPU), laptop computer is really a digital counter (the origin from the term “program counter”) that generally is one of several hardware registers. The instruction cycle starts with a fetch, where the CPU places the need for laptop computer around the address bus to transmit it towards the memory. The memory responds by delivering the items in that memory location around the data bus. (This is actually the stored-program computer model, where a single storage contains both executable instructions and ordinary data.) Following a fetch, the CPU proceeds to execution, a little action in line with the memory contents it acquired. At some stage in this cycle, laptop computer is going to be modified so the next instruction performed is another (typically, incremented so the next instruction may be the one beginning in the memory address rigtht after the final memory location of the present instruction).

Like other processor registers, laptop computer can be a bank of binary latches, each one of these representing one little bit of the need for laptop computer. The amount of bits (the width from the PC) pertains to the processor architecture. For example, a “32-bit” CPU could use 32 bits so that you can address 232 units of memory. When the PC is really a binary counter, it might increment whenever a pulse is used to the Total input, or even the CPU may compute another value and cargo it in to the PC with a pulse to the LOAD input.

To recognize the present instruction, laptop computer might be coupled with other registers that identify a segment or page. This method permits your personal computer with less bits by presuming that many memory units of great interest are inside the current vicinity.

Utilization of your personal computer that normally increments assumes that exactly what a computer does is perform usually straight line sequence of instructions. This type of PC is the central von Neumann architecture. Thus programmers write a consecutive control flow for algorithms that don’t have to become consecutive. The resulting “von Neumann bottleneck” brought to analyze into parallel computing, including non-von Neumann or dataflow models that didn’t make use of a PC for instance, instead of indicating consecutive steps, our prime-level programmer might specify preferred function and also the low-level programmer might specify this using combinatory logic.

These studies also brought to methods to making conventional, PC-based, CPUs improve your speed, including:

Modern high-level programming languages still stick to the consecutive-execution model and, indeed, a typical method of identifying programming errors is by using a “procedure execution” where the programmer’s finger identifies the purpose of execution like a PC would. Our prime-level language is basically the device language of the virtual machine, too complex to become built as hardware but rather emulated or construed by software.

However, new programming models transcend consecutive-execution programming:
